Types Of Electric Generator

Electromagnetic generators fall into one of two broad categories, dynamos and alternators.

• Dynamos generate direct current, usually with voltage or current fluctuations, usually through the use of a commutator
• Alternators generate alternating current, which may be rectified by another (external or directly incorporated) system.

Direct current generators

The dynamo become the first electrical generator capable of handing over energy for enterprise. The dynamo makes use of electromagnetic induction to transform mechanical rotation into direct current thru using a commutator. An early dynamo become built by using Hippolyte Pixii in 1832.Woolrich electrical Generator in Thinktank, Birminghamis the earliest electric generator utilized in an industrial procedure.It was utilized by the firm of Elkingtons for commercial electroplating.
The "dynamo-electric powered machine" hired self-powering electromagnetic subject coils as opposed to permanent magnets to create the stator subject.Wheatstone's layout became just like Siemens', with the distinction that in the Siemens design the stator electromagnets had been in collection with the rotor, however in Wheatstone's layout they were in parallel. The use of electromagnets in place of permanent magnets greatly extended the electricity output of a dynamo and enabled excessive power generation for the first time. This invention led immediately to the primary principal business makes use of of electricity. As an instance, within the 1870s Siemens used electromagnetic dynamos to power electric powered arc furnaces for the manufacturing of metals and other materials.
The dynamo system that become developed consisted of a desk bound shape, which provides the magnetic area, and a fixed of rotating windings which turn within that area. On larger machines the regular magnetic area is provided via one or extra electromagnets, that are commonly called subject coils.

Types Of DC Generator

• Homopolar generator

A homopolar generator is a DC electric generator comprising an electrically conductive disc or cylinder rotating in a plane perpendicular to a uniform static magnetic discipline. A capability difference is created between the center of the disc and the rim (or ends of the cylinder), the electrical polarity depending on the route of rotation and the orientation of the sphere.
It's also known as a unipolar generator, acyclic generator, disk dynamo, or Faraday disc. The voltage is commonly low, on the order of a few volts within the case of small demonstration models, but massive research generators can produce hundreds of volts, and some structures have a couple of generators in series to produce an even large voltage. They're uncommon in that they could produce splendid electric powered contemporary, a few more than 1,000,000 amperes, because the homopolar generator may be made to have very low inner resistance.

• MHD generator

A magnetohydrodynamic generator directly extracts electric powered energy from transferring warm gases thru a magnetic discipline, without the usage of rotating electromagnetic machinery. MHD generators had been initially evolved due to the fact the output of a plasma MHD generator is a flame, properly able to heat the boilers of a steam strength plant. The primary practical layout turned into the AVCO Mk. 25, advanced in 1965. The U.S. Authorities funded sizeable improvement, culminating in a 25 MW demonstration plant in 1987. In the Soviet Union from 1972 till the overdue Nineteen Eighties, the MHD plant U 25 became in ordinary industrial operation at the Moscow electricity gadget with a rating of 25 MW, the biggest MHD plant score in the global at that point. MHD generators operated as a topping cycle are currently (2007) much less green than blended cycle fuel mills.

Alternating current generators

Alternating current generating structures were known in easy simple form from Michael Faraday's unique discovery of the magnetic induction of electric cutting-edge. Faraday himself constructed an early alternator. His machine changed into a "rotating rectangle", whose operation was heteropolar - each lively conductor exceeded successively thru regions where the magnetic field was in opposite directions.
large two-section alternating modern turbines have been constructed by way of a British electrician, J.E.H. Gordon, in 1882. The primary public demonstration of an "alternator system" was given by using William Stanley, Jr., an worker of Westinghouse electric powered in 1886.

 Types Of AC Generator

• Induction generator

A few AC motors can be used as generators, turning mechanical strength into electric powered present day. Induction turbines operate by routinely turning their rotor faster than the synchronous velocity, giving terrible slip. A ordinary AC asynchronous motor usually may be used as a generator, without any internal changes. Induction generators are useful in applications consisting of minihydro energy plants, wind generators, or in decreasing excessive-strain fuel streams to lower strain, because they could recover electricity with pretty easy controls.
To operate an induction generator must be excited with a leading voltage; this is usually carried out via connection to an electrical grid, or sometimes they are self-excited by using phase correcting capacitors.

• Linear electric generator

In the simplest shape of linear electric generator, a sliding magnet movements from side to side through a solenoid - a spool of copper wire. An alternating modern is induced within the loops of cord by way of Faraday's law of induction whenever the magnet slides thru. This form of generator is used within the Faraday flashlight. Larger linear electricity generators are used in wave electricity schemes.

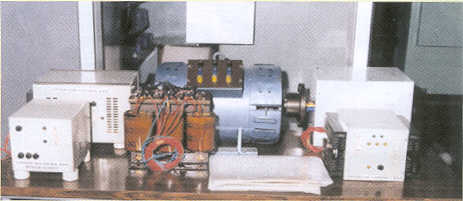

• Variable speed constant frequency generators

Many renewable power efforts attempt to harvest natural sources of mechanical electricity (wind, tides, and so forth.) to supply power. Due to the fact these sources differ in electricity carried out, general turbines the usage of everlasting magnets and stuck windings could deliver unregulated voltage and frequency. The overhead of regulation (whether before the generator thru equipment reduction or after generation by using electrical manner) is high in proportion to the evidently-derived electricity to be had.

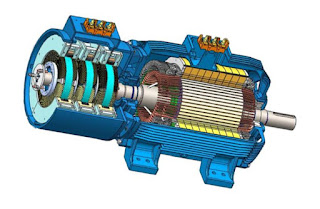

New generator designs which includes the asynchronous or induction singly fed generator, the doubly fed generator, or the brushless wound-rotor doubly fed generator are seeing fulfillment in variable pace consistent frequency programs, which include wind turbines or other renewable power technologies. These structures thus provide cost, reliability and efficiency blessings in certain use instances.
